How Laser Cutting Improves Custom Sheet Metal Bracket Manufacturing

Metal brackets are everywhere in industrial equipment. You can find them in machinery, automation systems, electrical equipment, construction equipment, and many other applications.

A bracket may look like a simple part, but its dimensions still matter. If the mounting holes are slightly off, the bracket may not fit properly. If the angle or overall dimensions are not right, connected components may not align as expected. In some applications, the bracket also needs to carry a certain load, so the material and thickness cannot be chosen only based on appearance.

For this reason, many projects require custom metal brackets rather than standard parts.

With a custom bracket, the engineer can decide the material, sheet thickness, overall dimensions, hole positions, slots, bending angles, and surface finish based on the actual application. This is especially useful when the bracket needs to fit into an existing assembly or work together with other custom-made components.

Laser cutting is a good option for this type of work. The cutting machine can follow the CAD drawing directly, so the profile, holes, and slots can be produced according to the design. If the design changes, the CAD file can simply be updated and the cutting program adjusted. There is no need to make a new stamping die every time the bracket design changes.

This also makes laser cutting practical for prototypes and small-batch production. Engineers can test a bracket, make changes, and then move to larger quantities once the design has been confirmed.

Of course, laser cutting is not always the best choice. For very large production volumes or extremely simple parts, stamping may be more economical. But when the design is customized, quantities are relatively small, or the project may still change, laser cutting offers a lot of flexibility.

For anyone sourcing custom sheet metal brackets, the key is not simply choosing the cheapest manufacturing process. Material, thickness, tolerance, production quantity, bending requirements, surface finish, and the final application all need to be considered together.

What Are Laser Cutting Bracket Parts?

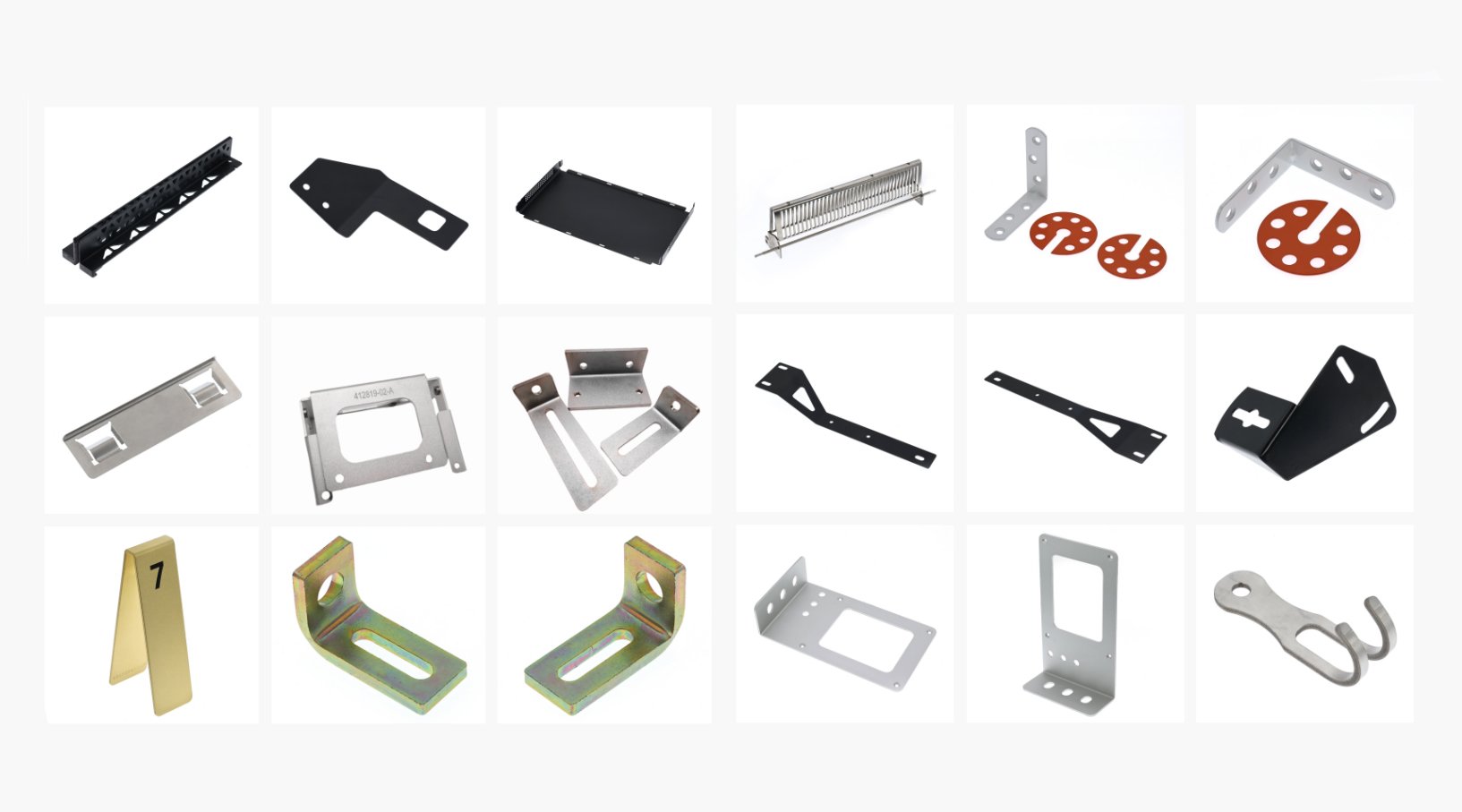

Laser cutting bracket parts are metal support or connection components manufactured using computer-controlled laser cutting equipment. The machine follows a programmed cutting path generated from engineering drawings or CAD files to create the required external profile and internal features.

Depending on the application, a custom bracket may include:

· Mounting holes

· Elongated slots

· Cutout sections

· Reinforcement areas

· Bending lines

· Connection surfaces

· Irregular external profiles

Unlike standardized hardware, non-standard brackets are usually designed around a particular machine, frame, enclosure, or assembly. Their dimensions may therefore vary significantly from one project to another.

Typical applications include:

· Industrial machinery

· Construction equipment

· Automation equipment

· Electrical cabinets

· Mechanical assemblies

· Equipment frames

· Mounting systems

· Customized structural components

The manufacturing process can also include bending, punching, welding, tapping, surface treatment, and assembly when the finished component requires more than laser cutting alone.

Laser Cutting vs. Stamping for Metal Brackets

There is no single manufacturing process that is ideal for every bracket. The correct choice depends on production quantity, geometry, material, tolerance, tooling requirements, and total project cost.

When Laser Cutting Makes Sense

Laser cutting is generally attractive when flexibility is more important than extremely high-volume production speed.

It can be considered when a project requires:

· Complex profiles

· Multiple hole patterns

· Frequent design changes

· Prototype production

· Small or medium production volumes

· Customized dimensions

Because the geometry can be changed through the production program, engineers have more freedom to modify the design during product development.

When Stamping May Be More Efficient

Sheet metal stamping becomes increasingly attractive when a large quantity of identical brackets is required.

After the appropriate tooling has been developed, stamping can produce large numbers of components efficiently and consistently.

For high-volume applications, buyers should compare:

· Tooling cost

· Part cost

· Production volume

· Cycle time

· Material utilization

· Expected product life

A manufacturer with experience in multiple fabrication processes can help determine which method provides the best balance between initial investment and long-term production cost.

What Determines the Accuracy of a Laser Cut Metal Bracket?

The accuracy of a finished bracket is influenced by several factors. Laser equipment itself is only one part of the manufacturing system.

Material Type

Different metals respond differently to laser processing.

Common materials for custom metal brackets include:

· Carbon steel

· Stainless steel

· Aluminum

· Galvanized steel

Material selection should be based on the actual application rather than price alone.

For example, stainless steel can be considered when corrosion resistance is important, while aluminum may be selected when lower weight is desirable. Carbon steel may be suitable for applications where structural strength and cost efficiency are primary considerations.

Material Thickness

The thickness of the sheet affects cutting parameters, heat input, edge condition, forming requirements, and the structural performance of the finished bracket.

A bracket supporting a heavy machine component may require substantially different material characteristics from a lightweight mounting bracket used inside an equipment enclosure.

Before production, the material specification should therefore be evaluated together with:

· Expected load

· Mounting method

· Bracket geometry

· Bending requirements

· Operating environment

Hole and Slot Position

Mounting holes and slots are often among the most important features of a bracket.

Their diameter, shape, spacing, and position determine how the bracket connects to surrounding components. For assemblies using bolts, screws, pins, or other fasteners, incorrect hole locations can create alignment problems during installation.

For this reason, quality inspection should include the positional relationship between critical features rather than relying only on general dimensional measurements.

How Are Custom Laser Cut Brackets Manufactured?

A finished bracket often requires several manufacturing stages. Laser cutting creates the initial profile, but additional operations may be required depending on the final design.

1. Engineering and Drawing Review

Production begins with customer drawings, CAD files, samples, or technical specifications.

The manufacturer reviews important information such as:

· Material grade

· Material thickness

· Overall dimensions

· Hole locations

· Dimensional tolerances

· Bending requirements

· Surface treatment

· Required production quantity

A manufacturing review can identify potential problems before materials are processed.

For OEM projects, this stage is also an opportunity to discuss whether a design can be simplified to reduce manufacturing time or material consumption without affecting its intended function.

2. CNC Laser Cutting

After the drawing is approved, the material is positioned on the laser cutting system.

The CNC program controls the cutting path according to the approved geometry. Cutting parameters are adjusted according to material type and thickness.

For laser cut metal brackets, important considerations include:

· Cutting speed

· Laser power

· Material thickness

· Edge quality

· Heat management

· Part nesting

Efficient nesting can also improve material utilization, particularly when many small brackets are produced from the same sheet.

3. Deburring and Secondary Processing

After cutting, some components may require additional edge treatment.

Depending on the product design, secondary processes can include:

· Deburring

· Drilling

· Tapping

· CNC bending

· Punching

· Welding

The required process should be determined by the final drawing rather than applying the same workflow to every bracket.

4. Bending and Forming

Some brackets are not flat components. They may need one or more bends to create mounting surfaces or increase structural rigidity.

CNC press brake equipment can be used to control:

· Bending angle

· Bend position

· Flange dimensions

· Overall component geometry

Accurate bending is particularly important when several bracket surfaces must align with other components during assembly.

5. Surface Treatment

Depending on the operating environment, a finished bracket may require additional surface protection.

Common options include:

· Powder coating

· Galvanizing

· Electroplating

· Anodizing

· Brushing

· Polishing

Surface treatment can improve corrosion resistance, wear resistance, or appearance. The appropriate treatment depends on the material and intended service environment.

6. Final Inspection

Quality control should verify the features that affect actual product performance.

Typical inspection items include:

· Overall dimensions

· Material thickness

· Hole diameter

· Hole position

· Bend dimensions

· Surface condition

· Assembly compatibility

For OEM production, inspection criteria can be established according to approved drawings and customer specifications.

Common Problems in Custom Metal Bracket Manufacturing

Understanding potential manufacturing problems can help engineers design more production-friendly components.

Welding Distortion

When a bracket requires welding, localized heat can cause deformation.

This can affect:

· Flatness

· Hole alignment

· Overall dimensions

· Assembly accuracy

For welded bracket assemblies, production planning should therefore consider welding sequence, fixture design, and post-weld inspection.

Tight Tolerances Without Functional Need

Not every dimension needs the same tolerance.

Applying unnecessarily tight tolerances to every feature can increase manufacturing costs without improving product performance.

A better approach is to identify critical dimensions that directly affect assembly or function and assign appropriate tolerances to those features.

Excessive Material Use

A bracket designed with excessive thickness or unnecessary structural material may increase:

· Material cost

· Component weight

· Cutting time

· Transportation cost

Engineering review can help determine whether the design provides the required strength without unnecessary material consumption.

How to Design Brackets for More Efficient Manufacturing

Good design can have a significant effect on fabrication cost and production consistency.

When developing a custom sheet metal bracket, engineers should consider the following:

Keep Functional Features Clearly Defined

Identify which holes, slots, surfaces, and dimensions are critical to assembly.

This allows the manufacturer to focus inspection and process control on the features that matter most.

Consider Material Thickness Early

Changing material thickness late in the project can affect cutting parameters, bending operations, weight, and structural performance.

Material selection should therefore be confirmed before production begins.

Avoid Unnecessary Geometry

Complex shapes should have a functional reason.

Removing unnecessary cutouts or complicated features can simplify manufacturing while maintaining the required performance.

Consider Secondary Operations

If a bracket requires bending, welding, tapping, or coating after laser cutting, these operations should be considered during the original design stage.

A component that looks simple on a CAD screen may require several manufacturing steps before it becomes a finished assembly-ready part.

Why Choose a Manufacturer With Integrated Fabrication Capabilities?

Custom bracket production may involve several processes rather than laser cutting alone.

An integrated manufacturing supplier can coordinate:

· Laser cutting

· Sheet metal forming

· bending

· Welding

· Surface treatment

· Assembly

· Quality inspection

This can simplify communication for OEM buyers and reduce the need to coordinate multiple subcontractors.

For international projects, manufacturing integration can also help improve production traceability and communication between engineering, production, and quality control teams.

Qingdao Huarui CNC Laser Cutting Bracket Parts

Qingdao Huarui Hardware Products Co. Ltd provides customized metal fabrication solutions for international customers requiring laser cutting bracket parts and other non-standard metal components.

The company manufactures customized bracket parts according to customer drawings, specifications, material requirements, and application needs. Its laser cutting bracket parts are designed for applications including machinery, construction, equipment assembly, and other industrial projects.

For OEM and ODM orders, customers can provide drawings or samples for manufacturing evaluation. Depending on the project requirements, production can involve laser cutting together with bending, welding, finishing, and other secondary processes.

This approach allows each bracket to be evaluated according to its actual application instead of using a standard manufacturing process for every project.

Contact Qingdao Huarui to discuss your custom bracket requirements, We're sure your any project will get prompt attention.
