Case Study: How Huarui Masters the Balance Between Structural Integrity and Aesthetic Excellence for Robot Enclosures

Recently, we received a challenging project for a series of high-precision robot enclosures. The client’s specifications were clear but demanding: Full-seam welding (Full Welding) across all structural joints.

While full welding ensures maximum structural integrity and IP-rated sealing, it introduces a notorious enemy in sheet metal fabrication: Thermal Deformation. The intense heat required for a continuous bead often causes thin-walled enclosures to warp, ruining both the dimensional tolerance and the sleek aesthetic required for a modern robot.

The Engineering Dialogue

We didn't just hit "start" on the machines. Our engineering team held three technical synch-ups with the client. We analyzed the heat dissipation paths and the material stress points. Our stance was firm: we wouldn't just deliver a welded box; we would deliver a precision-engineered housing.

The Solution: Robotic Precision + Craftsmanship

To solve the deformation puzzle, our engineers developed a specialized jig system to "lock" the geometry during the process. We deployed Advanced Welding Robots to execute the task.

Precision Heat Control: The robotic arm ensures a consistent travel speed and wire feed, minimizing the Heat Affected Zone (HAZ).

Fine Grinding: Post-welding, our craftsmen performed multi-stage grinding. The goal was to make the seams disappear, achieving a seamless, unibody look while maintaining the structural thickness of the joints.

The "Silent" Quality Standard: Proactive Penetrant Testing (PT)

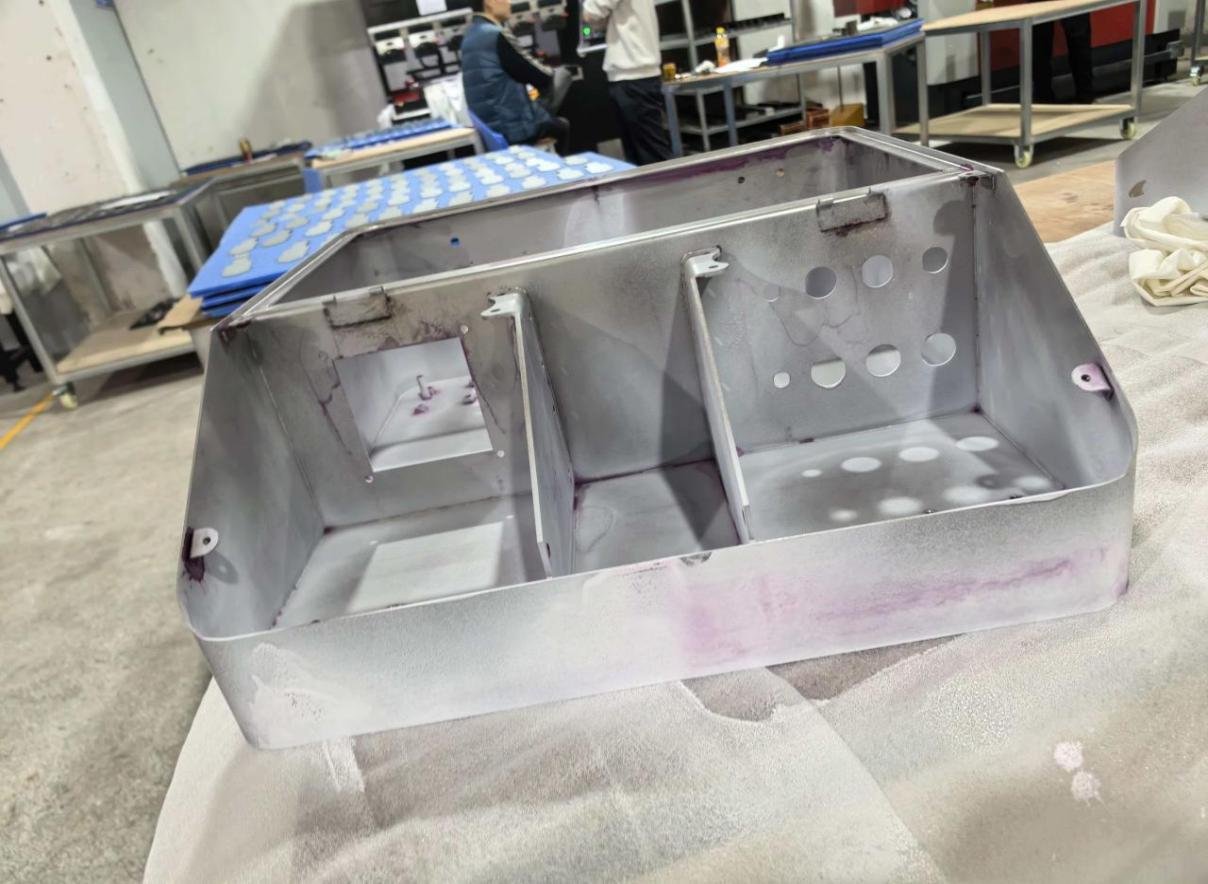

Here is where we went above and beyond. Although the client did not explicitly request it, our internal QC protocol triggered a Dye Penetrant Inspection (DPI).

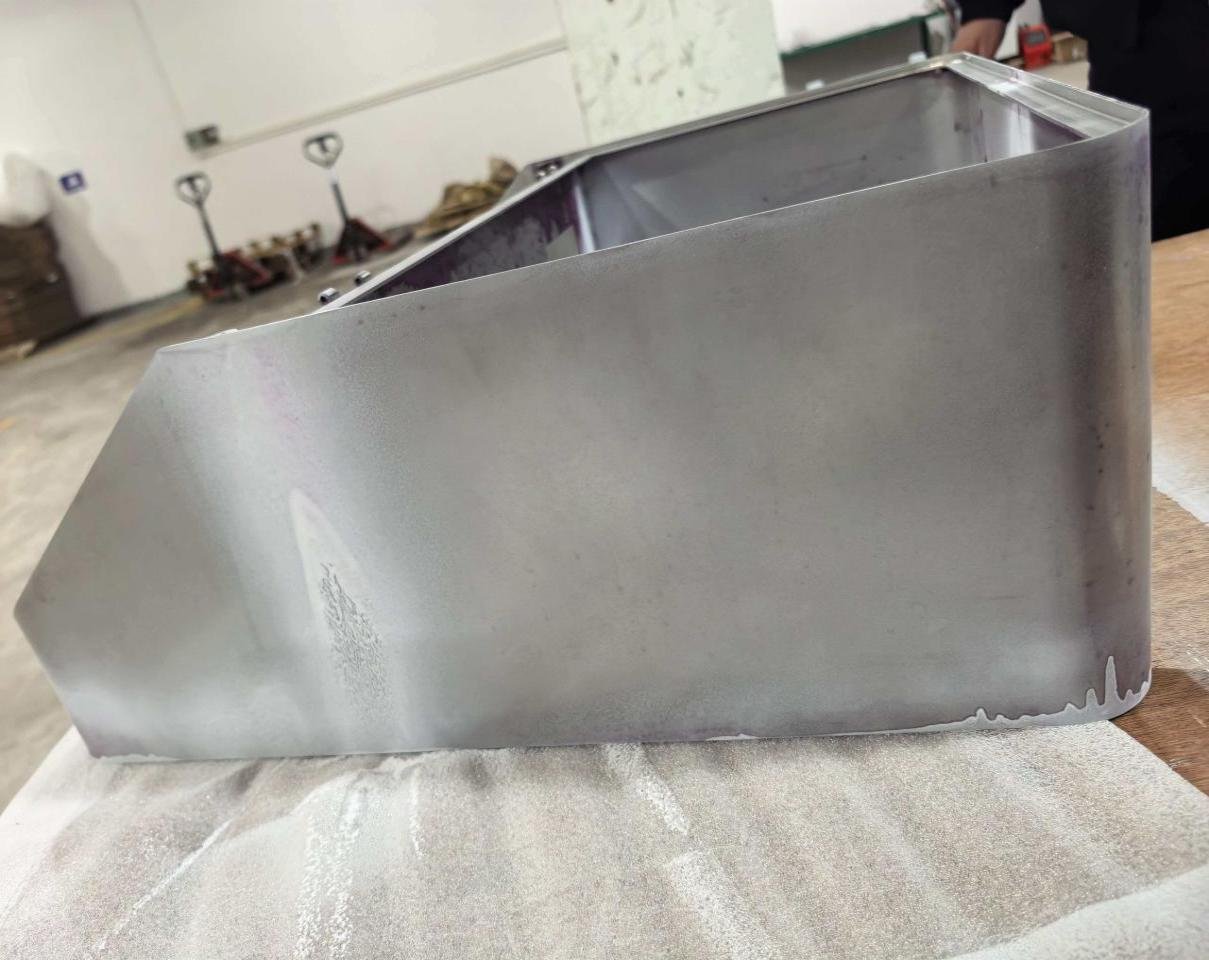

Before the enclosures moved to the automated powder coating line, our inspectors meticulously checked every millimeter of the welded seams. We looked for micro-cracks and porosities that the naked eye might miss.

Why? Because once the powder coating is applied, a hidden welding flaw becomes a ticking time bomb for structural failure. We ensured 100% integrity before the first gram of powder touched the metal.

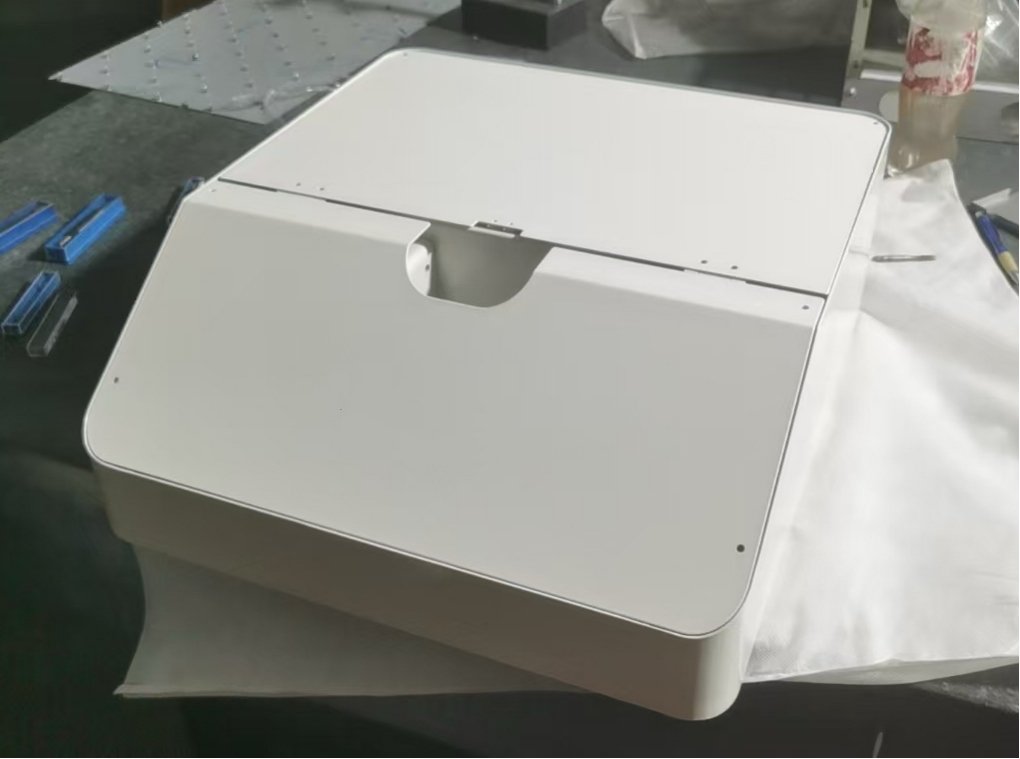

The Final Result: Consistency in Strength & Beauty

The finished enclosures featured:

• Zero Warpage: Dimensional accuracy maintained within ±0.5mm.

• Superior Finish: A flawless surface ready for high-end industrial environments.

• Verified Durability: Full-seam strength confirmed by professional NDT methods.

Our Philosophy

At our facility, we believe that high-quality manufacturing isn't just about following a drawing—it's about understanding the physics of metal and the intent of the designer. Whether it's CNC machining or complex sheet metal assemblies, we don't just build; we optimize.
