When a sheet metal component is used inside industrial equipment, automation machinery, electrical systems, or protective structures, its design cannot be separated from the application. A bracket must support the required load, an enclosure must protect internal components, and a machine guard must provide protection without interfering with operation or maintenance.
This is why custom sheet metal fabrication is often more than simply cutting and bending a piece of metal. The application determines the material, thickness, geometry, tolerances, joining method, surface finish, and even the sequence in which the part should be fabricated.
For equipment manufacturers and OEM buyers, understanding these relationships can make it easier to develop sheet metal parts that fit correctly, perform reliably, and remain practical to manufacture.
A common mistake in custom sheet metal projects is starting with dimensions before defining what the part actually needs to do.
Consider a simple metal bracket. Two brackets may look almost identical, but their fabrication requirements can be completely different.
One may be installed inside a dry electrical cabinet and only need to support a small component. Another may be mounted on industrial machinery and exposed to vibration, repeated loading, moisture, or elevated temperatures.
The basic questions should therefore be:
What does the component support or protect?
Where will it be installed?
What loads or forces will it experience?
Will it be exposed to moisture, chemicals, heat, dust, or vibration?
How often will it be removed or serviced?
Does it need a specific appearance or surface finish?
Which dimensions are critical for assembly?
Is the component a prototype, low-volume part, or repeat-production item?
Once these requirements are understood, the fabrication approach becomes much easier to determine.
Brackets are among the most common custom sheet metal components because standard brackets often cannot accommodate specific mounting locations or equipment geometries.
A custom equipment bracket may need to:
Support a motor, sensor, control component, or cable assembly
Connect two components at a specific angle
Fit into a restricted installation space
Maintain a defined mounting height
Withstand vibration or mechanical loading
Provide access for installation and maintenance
For a bracket, the relationship between material thickness, bend geometry, hole location, and load direction is particularly important.
For example, increasing material thickness may improve rigidity, but it can also increase bending force and component weight. Adding reinforcement may provide better stiffness without simply making the entire part thicker.
Hole locations also need to be considered relative to bends. A mounting hole placed too close to a bend can become distorted during forming or make tooling access difficult.
For this type of application, the most useful design approach is not simply to specify a thicker metal sheet. It is to understand how the bracket will be loaded and how its geometry can provide the required stiffness.
Sheet metal enclosures are used to protect electrical, electronic, automation, and control components from accidental contact and environmental conditions.
A typical enclosure may require:
Mounting holes
Cable entry openings
Ventilation features
Hinged doors
Access panels
Internal mounting plates
Threaded hardware
Sealing interfaces
Surface coatings
The enclosure has to work as an assembly.
A panel may be dimensionally correct on its own but still create problems if the bending sequence changes the position of a mounting hole or if multiple panels do not align correctly during assembly.
Designers therefore need to consider:
Flat pattern → Cutting → Bending → Hardware → Assembly
rather than treating each operation independently.
For outdoor or demanding environments, material and surface treatment also become important. Stainless steel, galvanized steel, or coated carbon steel may be considered depending on the required corrosion resistance and application conditions.
Machine guards are designed to separate operators from moving components, hot surfaces, debris, or other potential hazards.
Typical applications include:
Automated production lines
CNC equipment
Conveyor systems
Robotics
Packaging machinery
Material handling equipment
A machine guard must provide protection without making the equipment difficult to operate or maintain.
A practical guard may require:
Openings for visibility
Removable panels
Access doors
Ventilation
Cable or hose clearance
Mounting points
Reinforced edges
This creates an important balance between protection, accessibility, rigidity, and manufacturability.
A completely enclosed structure may provide protection but make maintenance difficult. Conversely, excessive openings may reduce its effectiveness.
From a fabrication perspective, bend lines, mounting holes, corner joints, and panel interfaces should be considered together so that the finished guard remains rigid and can be assembled accurately.
Automation equipment often contains many custom sheet metal components because every machine may have a different layout.
Sheet metal parts can be used for:
Equipment frames
Sensor brackets
Cable covers
Protective panels
Component mounting plates
Control boxes
Access doors
Internal supports
Automation equipment often has limited internal space. A fabricated component may need to fit around motors, sensors, cables, pneumatic components, linear guides, or robotic mechanisms.
In these situations, a few millimeters can affect the entire assembly.
The fabrication design should therefore consider:
Component clearance
Cable routing
Fastener access
Maintenance space
Moving-part clearance
Assembly sequence
Bend radius
Sheet thickness
This is where custom sheet metal fabrication provides an advantage over standard components. The part can be developed around the machine rather than forcing the machine layout to accommodate an off-the-shelf component.
Sheet metal is also widely used for components that guide, contain, or protect airflow.
Depending on the application, fabricated parts may include:
Duct sections
Covers
Access panels
Mounting brackets
Equipment housings
Airflow guides
Protective enclosures
For these components, geometry can influence more than appearance.
Sharp internal transitions, unnecessary openings, poor sealing interfaces, or inconsistent assembly can affect airflow performance and installation.
Material selection also depends on whether the component will be installed indoors, outdoors, or in an environment with elevated humidity or corrosive exposure.
Agricultural machinery and outdoor equipment place different demands on sheet metal components.
Parts may encounter:
Rain
Humidity
Dust
Mud
Fertilizers
Chemicals
Temperature changes
Mechanical vibration
For these applications, corrosion protection and structural durability can become more important than appearance alone.
A fabricated cover or guard may therefore require an appropriate material and protective finish. Drainage, folded edges, mounting strength, and accessibility for cleaning should also be considered during design.
For outdoor equipment, a good sheet metal design should account for the complete service environment rather than only the conditions inside the manufacturing facility.
Custom sheet metal fabrication is also useful when an original component is damaged, discontinued, or no longer readily available.
This situation is common with older machinery and specialized equipment.
A replacement project may start with:
An existing physical component
Photographs
Measurements
A partial drawing
A damaged sample
An assembly drawing
The challenge is not simply reproducing the external shape.
The replacement part may need to match:
Mounting hole locations
Overall dimensions
Bend angles
Material thickness
Interfaces with adjacent components
Fastener locations
Functional clearances
When an original CAD model is unavailable, careful measurement and reverse-engineering can help establish the geometry needed for fabrication.
Custom sheet metal fabrication is particularly useful during product development.
A prototype enclosure, bracket, cover, or machine frame may go through several design revisions before entering production.
At this stage, the priority is often to identify problems early:
Does the component fit?
Can the assembly be installed?
Are the mounting holes correctly positioned?
Is there enough clearance?
Is the structure sufficiently rigid?
Can operators access the required components?
Can the design be manufactured repeatedly?
A fabrication supplier involved early in the development process can provide practical feedback before the design is released for larger production quantities.
The application should guide material selection rather than choosing a material first and trying to adapt the design afterward.
Application Requirement | Material Consideration |
High structural strength | Carbon steel or suitable steel grade |
Corrosion resistance | Stainless steel or protected steel |
Low component weight | Aluminum |
Outdoor exposure | Galvanized or coated steel |
Clean or demanding environment | Stainless steel |
General industrial equipment | Carbon steel or aluminum depending on requirements |
The final decision should also consider material availability, thickness, forming behavior, welding requirements, finishing, and production quantity.
Sheet thickness should be selected according to the function of the component.
A protective cover may need relatively little structural strength, while a machine frame or heavily loaded bracket may require significantly greater rigidity.
However, simply increasing thickness is not always the best solution.
A component’s stiffness can also be influenced by:
Bend geometry
Flanges
Ribs
Folded edges
Reinforcement features
Overall part geometry
Mounting configuration
For this reason, the required thickness should be evaluated together with the complete geometry.
A useful way to approach a custom sheet metal project is to work backward from the application.
Determine what the component must support, protect, connect, contain, or cover.
Identify exposure to moisture, chemicals, heat, vibration, dust, outdoor conditions, or cleaning processes.
Identify how the part connects to other components, including mounting holes, fasteners, clearances, and access requirements.
Choose a practical material based on strength, weight, corrosion resistance, forming requirements, and operating conditions.
Check bend radii, hole-to-bend distances, tolerances, tooling access, welding requirements, and fabrication sequence.
Depending on the design, the process may include CNC laser cutting, punching, shearing, press brake bending, welding, hardware insertion, and finishing.
Verify the dimensions and features that directly affect installation and performance.
This application-first approach can help reduce unnecessary redesign and make communication between the customer, designer, and fabricator more effective.
The more clearly the application is defined, the easier it is for a manufacturer to evaluate the project.
For a custom sheet metal project, useful information includes:
2D drawings
3D CAD files
Physical samples
Material requirements
Sheet thickness
Critical dimensions
Required tolerances
Mounting requirements
Expected loads
Operating environment
Surface finish
Production quantity
Assembly requirements
If some specifications have not yet been finalized, explaining the intended application can still provide valuable information for the manufacturing review.
For example, saying that a bracket will support a vibrating motor provides more engineering context than simply specifying a bracket size.
Many sheet metal problems become more expensive when they are discovered after production begins.
A hole that interferes with a bend, a panel that cannot be assembled in the intended sequence, or a coating that is unsuitable for the operating environment may require redesign and rework.
An early fabrication review can identify these issues before material is cut.
For OEM equipment manufacturers, this can be particularly valuable because the sheet metal component is usually part of a larger system. Its dimensions and interfaces must work with other mechanical, electrical, and structural components.
OEM projects often require components designed around a specific machine or product rather than standard catalog parts.
Qingdao Huarui Hardware Products Co., Ltd. works with customer drawings, CAD files, samples, and project specifications to manufacture custom metal components for different equipment and application requirements.
Depending on the project, fabricated components can involve cutting, bending, welding, finishing, and assembly-related operations. The manufacturing approach is determined according to the part geometry, material, tolerances, quantity, and intended use.
For a new design, prototype, replacement component, or repeat-production part, providing the application requirements together with the technical drawings can help create a more complete manufacturing evaluation.
What industries use custom sheet metal fabrication?
Custom sheet metal parts are widely used in industrial equipment, automation, robotics, electrical systems, HVAC equipment, agricultural machinery, transportation equipment, and other applications requiring application-specific metal components.
What sheet metal parts are commonly custom fabricated?

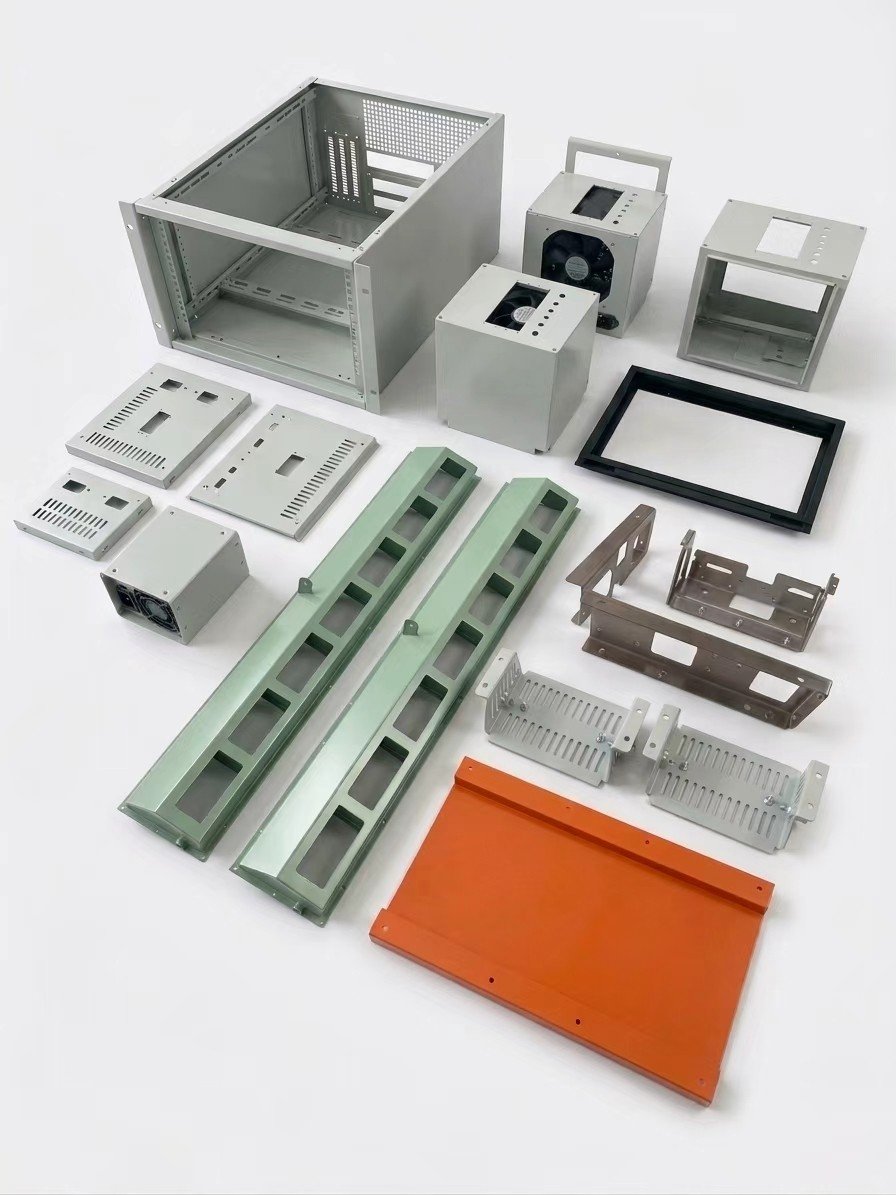

Common parts include brackets, enclosures, machine guards, panels, covers, mounting plates, frames, cabinets, equipment housings, and protective structures.
How does the application affect sheet metal design?
The application determines requirements such as strength, material, thickness, corrosion resistance, dimensions, tolerances, mounting arrangement, accessibility, and surface finish. These factors should be considered before selecting the fabrication process.
Can sheet metal fabrication be used for prototypes?
Yes. Custom sheet metal fabrication is suitable for prototypes and low-volume parts, particularly when designers need to test fit, assembly, clearance, structural performance, or equipment integration before larger production.
Can a replacement sheet metal part be made without the original CAD file?
In many cases, yes. A physical sample, measurements, photographs, or available technical drawings can provide useful information for recreating a replacement component. The feasibility depends on the complexity and accuracy requirements of the part.
