Controlling Tolerances in Robot Chassis Fabrication for Reliable Assembly

Robotics is moving quickly from prototype demonstrations toward real-world deployment and higher-volume production. As robot designs become more complex, manufacturing consistency is becoming just as important as the performance of motors, sensors, and software.

One area that deserves more attention is robot chassis fabrication.

The chassis connects many of the robot's critical components, including motors, batteries, sensors, controllers, gearboxes, and protective enclosures. Small dimensional variations in the chassis can affect how these components fit together, making tolerance control an important part of reliable robot assembly.

Sheet metal fabrication is widely used for robot chassis, frames, covers, and mounting structures, while CNC machining provides the precision needed for critical interfaces and functional components. The challenge is not to make every dimension extremely tight, but to control the right tolerances at the right stage of manufacturing so that parts fit reliably and remain consistent from prototype to production.

Why Tolerance Matters in Robot Chassis Fabrication

A robot chassis is rarely just a simple metal frame. It often contains multiple mounting surfaces, holes, bends, brackets, and welded joints.

Several manufacturing processes can influence final dimensions:

• Laser cutting

• CNC bending

• Welding

• CNC machining

• Surface finishing

• Final assembly

For sheet metal fabrication, material thickness, springback, bend sequence, tooling, and welding heat can all affect dimensional accuracy.

A part may be within tolerance at each individual operation, while accumulated variation can still make final assembly difficult. This is particularly important for robot structures with multiple connected components.

Sheet Metal Fabrication for Robot Chassis

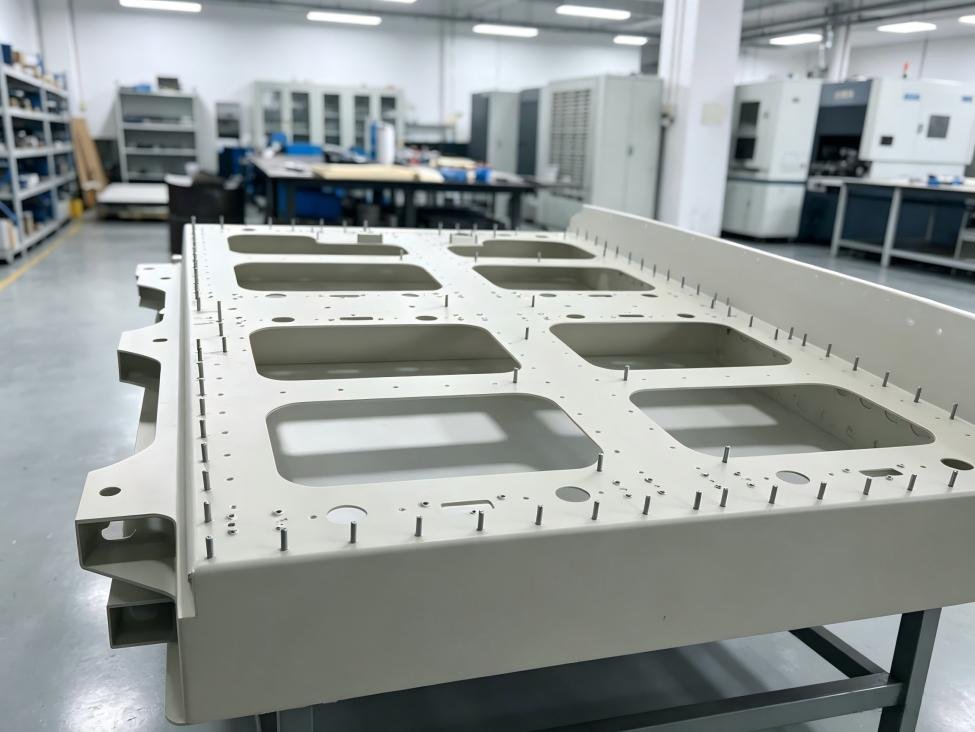

Sheet metal fabrication is widely used for robot chassis, battery housings, protective covers, brackets, and internal support structures.

Laser cutting provides flexibility for complex profiles and mounting holes, while CNC bending creates the required structural geometry.

However, tighter tolerances are not always better.

Applying unnecessarily tight tolerances to every dimension can increase machining time, inspection requirements, and production costs.

A more practical approach is to identify the dimensions that actually affect assembly and function.

Mounting holes, motor interfaces, bearing locations, and alignment surfaces may require tighter control, while non-critical external features can often use more relaxed tolerances.

CNC Machining for Critical Robot Components

Some robot interfaces require more precision than conventional sheet metal fabrication can economically provide.

This is where CNC machining becomes valuable.

Typical CNC machining parts used in robotics include:

• Motor mounts

• Gearbox interfaces

• Bearing housings

• Precision brackets

• Adapter plates

• Structural connectors

• Sensor mounting components

A robot chassis can combine fabricated sheet metal structures with CNC-machined interfaces.

For example, a chassis can be laser cut, bent, and welded first, followed by CNC machining of critical mounting surfaces.

This approach allows manufacturers to maintain precision where it matters without machining the entire chassis from solid material.

Welding and Dimensional Stability

Welding is another important factor in robot chassis fabrication.

Heat generated during welding can cause distortion, particularly in thin sheet metal structures and large flat panels.

Manufacturers can reduce this risk through:

• Appropriate joint design

• Welding fixtures

• Controlled weld sequences

• Proper clamping

• Optimized heat input

• Post-weld CNC machining where necessary

For precision robot assemblies, fixtures are especially useful because they provide consistent positioning during welding and help maintain repeatability from one chassis to the next.

DFM for More Reliable Robot Manufacturing

Tolerance control should start before production.

A DFM (Design for Manufacturing) review can identify potential issues with:

• Sheet thickness

• Bend radius

• Hole-to-bend distance

• Welding access

• Critical mounting points

• Machining tolerances

• Assembly sequence

• Surface finishing

This becomes even more important as a robot moves from prototype to pilot production.

A prototype may tolerate some manual adjustment. A production robot needs parts that can be assembled consistently without repeated fitting or modification.

From Prototype to Production

The robotics industry is increasingly working toward scalable production, particularly in areas such as humanoid robots, autonomous mobile robots, and industrial automation.

As production volumes increase, manufacturers need to improve not only manufacturing speed but also process consistency.

The production process may gradually evolve from:

Prototype → Small Batch → Pilot Production → Scaled Production

At the same time, manufacturers can introduce more controlled fixtures, standardized inspection, automated welding, and optimized CNC machining and sheet metal fabrication processes.

This helps reduce variation while keeping production practical.

Combining Sheet Metal and CNC for Robotics

Robot manufacturers often need both fabricated and machined metal components.

Sheet metal fabrication is suitable for larger structures, enclosures, covers, brackets, and lightweight chassis components.

CNC machining is better suited to precision interfaces and complex mechanical components.

Combining the two processes can provide a practical balance between:

• Precision

• Strength

• Weight

• Manufacturing cost

• Production flexibility

At Qingdao Huarui, we provide custom sheet metal fabrication and CNC machining for robotics and industrial equipment, including laser cutting, CNC bending, welding, robotic welding, CNC machining, surface finishing, assembly, and quality inspection.

Our engineering team can also support DFM reviews and help identify tolerance or assembly issues before production.

Reliable Robots Start With Consistent Metal Parts

Robot performance depends on more than electronics and software.

Motors need accurate mounting surfaces. Sensors need stable positioning. Gearboxes need proper alignment. Covers and enclosures need to fit correctly.

As robotics moves toward larger-scale deployment, consistent robot chassis fabrication and reliable CNC machining parts will become increasingly important.

The goal is not to make every dimension extremely precise.

It is to control the right dimensions, with the right manufacturing process, at the right cost.

For robot manufacturers, that means combining practical sheet metal fabrication, CNC machining, welding, fixtures, inspection, and DFM to create mechanical components that assemble reliably from the first unit to the next thousand.

Qingdao Huarui continues to apply precision sheet metal fabrication principles to custom metal structures and components, helping customers translate engineering drawings into manufacturable chassis and mechanical assemblies. If you have any sheet metal fabrication project，please feel free to share with us.
