Common Sheet Metal Bending Problems and How to Avoid Them

Sheet metal bending is one of the most widely used processes in custom metal fabrication. It transforms flat metal sheets into functional components such as brackets, enclosures, equipment covers, mounting plates, and structural parts.

Although bending may appear straightforward, achieving consistent dimensions and angles requires careful control of material properties, tooling, machine settings, and part design.

For manufacturers and OEM buyers, understanding common sheet metal bending problems can help reduce material waste, avoid assembly issues, and improve overall production efficiency.

In this article, we explore six common bending defects and practical ways to prevent them.

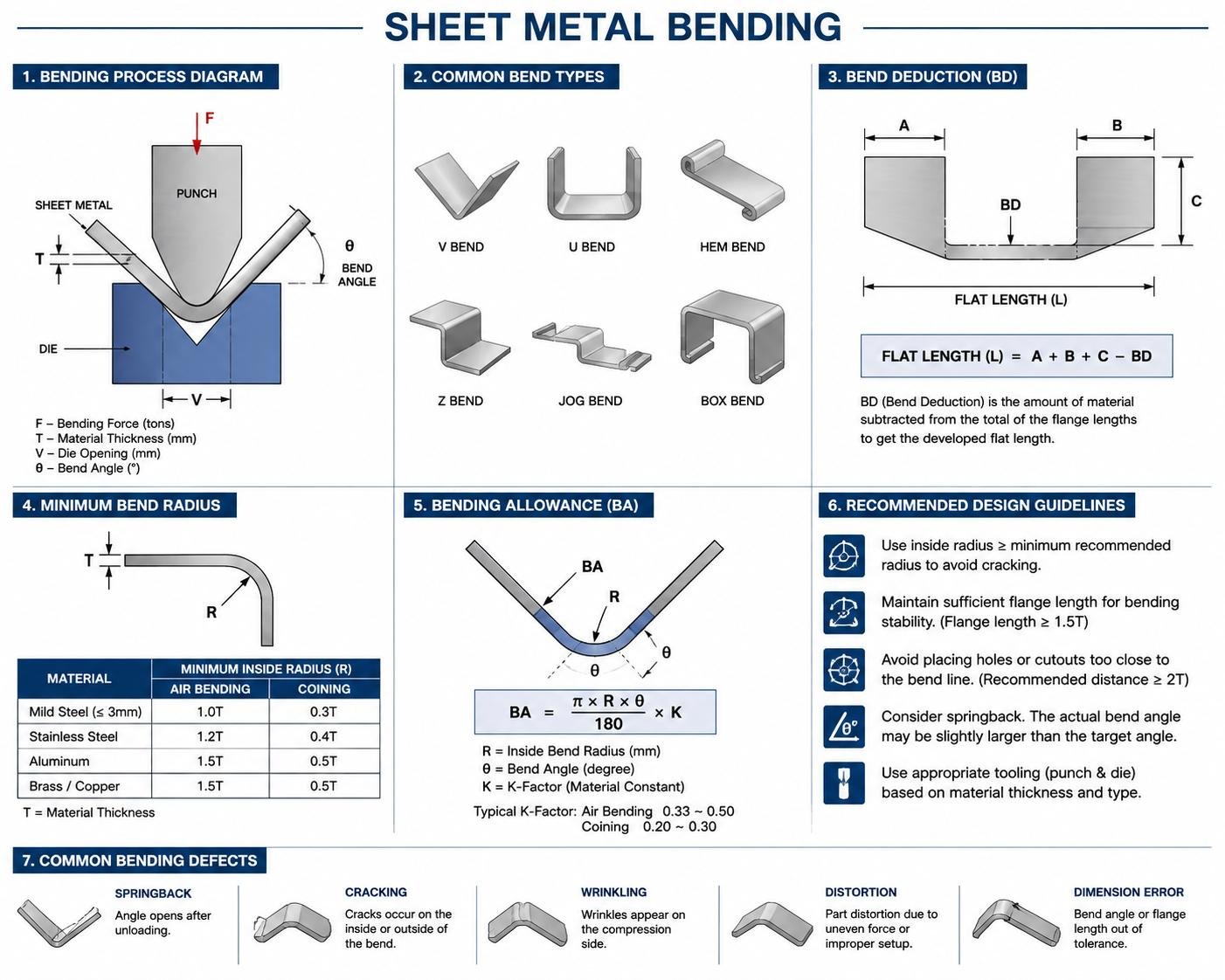

1. Springback: Why Does the Metal Return After Bending?

Springback occurs when a metal sheet partially returns toward its original shape after the bending force is removed. This can cause the final bend angle to differ from the intended design.

The amount of springback depends on several factors, including material strength, thickness, bend radius, and bending method. Higher-strength materials often require particular attention during process setup.

How to prevent springback:

• Select appropriate bending parameters based on the material and thickness.

• Use controlled overbending or other suitable compensation methods.

• Maintain consistent material specifications between production batches.

• Verify bend angles during first-piece inspection and adjust the process when necessary.

For precision sheet metal fabrication, trial bending and measurement are especially important when a component contains multiple bends or must fit closely with other parts.

2. Cracking at the Bend Area

Cracking can occur when the material experiences excessive deformation during bending. It is more likely when the material has limited ductility, the inside bend radius is too small, or the bending direction is unfavorable for the sheet's properties.

Material grade, thickness, grain direction, and surface condition can all influence the risk of cracking.

How to prevent bending cracks:

• Choose a suitable inside bend radius for the material and thickness.

• Confirm the material grade and mechanical properties before production.

• Consider grain direction when working with materials that are sensitive to directional forming behavior.

• Avoid unnecessary sharp bends that exceed the material's forming capability.

• Conduct forming trials for unfamiliar materials or demanding geometries.

A well-designed bend should balance dimensional requirements with the material's ability to deform without damage.

3. Inaccurate Bend Angles and Dimensions

Dimensional errors can prevent a fabricated part from fitting correctly during assembly. Even a small angle deviation may affect the overall height, width, hole alignment, or position of adjoining panels.

Common causes include incorrect machine settings, inconsistent material thickness, tooling wear, and insufficient process verification.

How to improve dimensional accuracy:

• Review the engineering drawing and identify critical dimensions.

• Verify tooling, back-gauge positioning, and machine settings before production.

• Inspect the first completed part before continuing with the full batch.

• Measure critical angles and dimensions at suitable stages of production.

• Maintain consistent inspection methods throughout the manufacturing process.

For components with several bending operations, each bend should be considered as part of the complete geometry rather than as an isolated feature.

4. Surface Scratches and Tool Marks

Surface damage is another common concern, especially for stainless steel enclosures, brushed aluminum panels, and visible decorative components.

Scratches may be caused by contact with tooling, metal chips, contaminated work surfaces, or improper handling during production.

How to protect the surface:

• Keep the tooling and working surfaces clean.

• Use suitable protective films or tooling protection when appropriate.

• Handle finished surfaces carefully during bending and transfer.

• Establish clear requirements for visible surfaces and acceptable cosmetic marks.

• Inspect surface appearance before applying powder coating, anodizing, polishing, or other finishes.

Surface protection should be considered throughout the manufacturing process, not only during final inspection.

5. Flange Distortion and Interference Between Bends

Some sheet metal designs are difficult to bend because of short flanges, closely spaced bends, or interference between the workpiece and machine tooling.

These issues can cause deformation, incorrect dimensions, or difficulty positioning the part during production.

How to avoid design-related bending problems:

• Review flange lengths and bend locations during the design stage.

• Check whether the part can be positioned and supported correctly on the press brake.

• Consider tooling clearance and the sequence of bending operations.

• Adjust the design where practical to improve manufacturability.

• Confirm that mounting holes, cutouts, and adjacent features remain correctly positioned after bending.

Early design-for-manufacturing review can help identify potential problems before material is purchased or production begins.

6. Inconsistent Results Between Production Batches

A component may meet its specifications during prototype production but show dimensional variation when manufacturing quantities increase.

Possible causes include changes in material thickness or strength, differences in tooling setup, machine parameter variations, and inconsistent inspection practices.

How to improve batch consistency:

• Establish clear material and drawing specifications.

• Standardize approved bending parameters and tooling setups.

• Use first-piece approval before continuing with production.

• Apply consistent in-process and final inspection procedures.

• Keep records of relevant process adjustments and inspection results.

A repeatable production process is essential for OEM customers who require consistent parts across multiple orders.

7. Why Design for Manufacturability Matters

Many sheet metal bending problems can be reduced before production begins.

When preparing a design, consider the following factors:

• Material Selection: Different grades of carbon steel, stainless steel, and aluminum have different forming characteristics.

• Bend Radius: The appropriate inside radius depends on the material, thickness, and required geometry.

• Flange Length: Adequate flange length helps ensure that the workpiece can be positioned and bent correctly.

• Hole and Cutout Placement: Features placed too close to a bend may distort during forming. Their location should be reviewed according to the material and process.

• Dimensional Tolerances: Specify tighter tolerances where functional requirements demand them, rather than applying unnecessarily restrictive tolerances to every feature.

• Assembly Requirements: Consider how the bent component will connect to brackets, frames, enclosures, and CNC-machined parts.

A design review between the customer and manufacturer can help balance functionality, manufacturing feasibility, and production cost.

8. Choosing a Reliable Custom Sheet Metal Fabrication Partner

Consistent bending quality depends on more than the press brake itself. Engineering review, material control, tooling selection, operator experience, and inspection procedures all contribute to the final result.

When evaluating a sheet metal fabrication supplier, consider whether the manufacturer can:

• Review 2D drawings and 3D models before production.

• Recommend practical adjustments for manufacturability.

• Handle laser cutting, bending, welding, grinding, and surface finishing.

• Inspect critical dimensions and bend angles.

• Coordinate sheet metal parts with CNC-machined components when required.

• Support prototypes, small batches, and repeat production orders.

Working with a supplier that understands the complete manufacturing process can help reduce communication gaps and avoid preventable production problems.

Conclusion

Sheet metal bending problems such as springback, cracking, dimensional inaccuracies, surface scratches, and flange interference can affect product quality, assembly, and manufacturing costs.

By selecting suitable materials, reviewing designs carefully, controlling bending parameters, and implementing effective inspection procedures, manufacturers can improve consistency and reduce unnecessary rework.

For custom sheet metal components, early communication between the customer and fabrication team is one of the most effective ways to achieve reliable results from prototype development to production.
