Sheet Metal Fabrication Guide: From Design to Reliable Production

Good sheet metal fabrication is not simply about cutting a piece of metal to size. The finished part needs to fit, function, survive its working environment, and be practical to manufacture.

This becomes even more important for products such as robots, automation equipment, electrical cabinets, and industrial machinery. A robot enclosure, for example, may look like a simple bent sheet, but the position of every mounting hole, bend, bracket, and access panel can affect the components inside.

For this reason, a good fabrication project starts with more than a drawing. Material, tolerances, manufacturing processes, finishing, assembly, and inspection all need to work together.

What Goes Into Sheet Metal Fabrication?

Different projects call for different combinations of processes. At Qingdao Huarui, we can manage multiple operations as part of one manufacturing process rather than treating every step as a separate job.

Common processes include:

• Laser cutting – suitable for accurate profiles, holes, slots, and complex contours.

• CNC punching – efficient for repeated holes and formed features.

• CNC bending – creates flanges, channels, brackets, enclosures, and other three-dimensional shapes.

• Welding – joins individual components into frames and welded assemblies.

• Hardware insertion – adds nuts, studs, standoffs, and other fastening hardware.

• Surface finishing – including powder coating, anodizing, plating, polishing, and other treatments.

• Assembly – brings fabricated parts and purchased components together into finished or semi-finished assemblies.

A small robot bracket may only require laser cutting, bending, and hardware insertion. A robot enclosure or industrial cabinet may go through laser cutting, multiple bends, welding, grinding, powder coating, hardware insertion, and final inspection.

The point is not to use as many processes as possible. It is to use the right combination for the part.

Start With the Function, Not Just the Drawing

One of the most useful things a customer can provide is information about how the part will actually be used.

A drawing tells us dimensions and tolerances. The application tells us why those dimensions matter.

For example, a mounting hole connecting a robot motor may need much tighter positional control than an opening used only for cable routing. A visible enclosure panel may require a higher cosmetic standard than an internal support bracket.

This distinction matters because making every dimension extremely tight can increase machining, inspection, and production costs without improving the product.

At Huarui, our engineering team can review drawings from a DFM (Design for Manufacturability) perspective and help identify which features really need close control.

What Information Does a Fabricator Need?

A complete RFQ doesn't have to be complicated. The more clearly the important requirements are defined, however, the easier it is to provide an accurate quotation and produce the part correctly.

Useful information includes:

1. Drawings or 3D Models

Provide dimensions, tolerances, bend information, hole sizes, material requirements, and revision information where applicable.

2. Material and Thickness

Tell us the material and thickness if they are already specified. If you are unsure, explaining the application can be more useful than choosing a material based only on price.

3. Quantity

Prototype, small batch, and mass production can require very different manufacturing approaches. Quantity can affect everything from material purchasing to automation and tooling.

4. Surface Finish

Specify whether you need powder coating, anodizing, galvanizing, polishing, brushing, or another finish. For visible products, color, gloss, texture, and surface quality should also be defined.

5. Application

Let the manufacturer know whether the part will be used indoors, outdoors, in a humid environment, around chemicals, or as part of a moving machine.

This is particularly important for robotics. A mobile robot operating in a warehouse has different requirements from a robot working in a clean production environment.

6. Assembly Requirements

If the part connects to motors, electronics, CNC components, bearings, or other structures, providing the related assembly information can help identify potential interference before production.

Design Details That Can Make a Big Difference

Small design decisions can have a surprisingly large effect on manufacturing cost and consistency.

Keep Bend Radii Practical

A bend radius that is too small for the selected material and thickness may increase the risk of cracking or deformation.

Keep Holes Away From Bends

Holes positioned too close to a bend can deform during forming or make accurate bending more difficult.

Avoid Unnecessary Tight Tolerances

If a dimension doesn't affect assembly or function, an unnecessarily tight tolerance may only add inspection and production cost.

Consider Weld Accessibility

A joint that looks fine on a drawing may be difficult to reach with a welding torch. Designing accessible weld locations can make production much easier.

Think About the Finish Before Fabrication

Powder coating, anodizing, plating, and other finishes can affect appearance and, in some cases, dimensions. Masking, drainage, hanging points, and coating access may need to be considered in advance.

Quality Control Should Follow the Part

Quality inspection shouldn't simply mean measuring everything at the end.

For a typical sheet metal component, inspection may include:

• Overall dimensions

• Bend angles

• Hole positions

• Flatness

• Weld quality

• Hardware placement

• Surface finish

• Coating coverage

For a robot bracket, the hole position and mounting dimensions may be critical because they directly affect assembly.

For an external robot cover, surface appearance and coating quality may receive more attention.

In other words, inspection should focus on what matters to the function of the part.

At Qingdao Huarui, our QC team carries out inspections throughout production and can provide inspection reports for customers when required.

From Prototype to Production

A good sheet metal supplier should be able to support more than the first batch.

Many of our customers start with a prototype or small quantity. After testing, the design may be modified before moving into regular production.

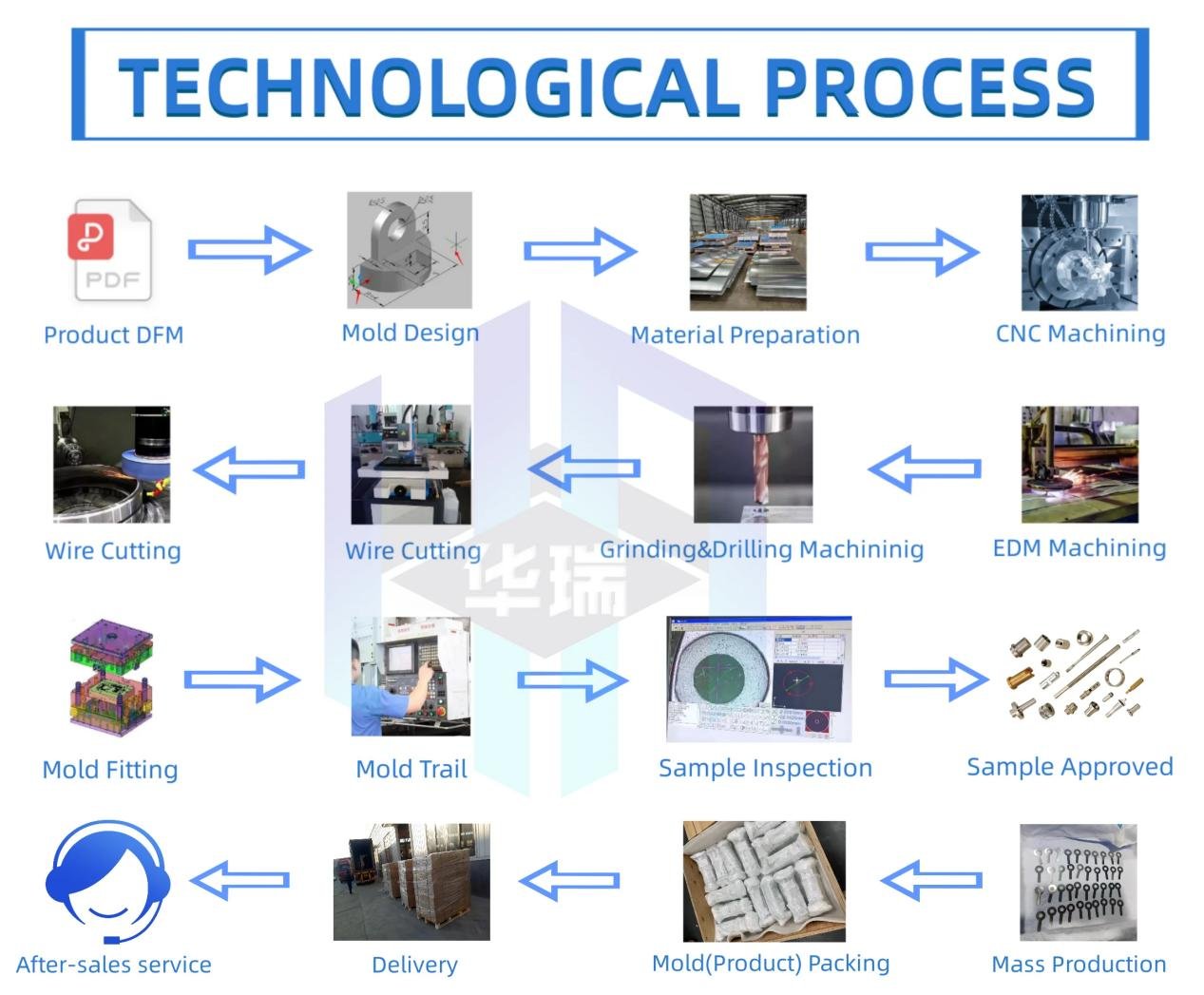

A typical process looks like:

Design → DFM Review → Prototype → Testing → Design Update → Small Batch → Production

This is particularly common in robotics, where products are still evolving and mechanical designs often change alongside motors, batteries, sensors, and electronics.

The manufacturing process needs to be flexible enough to keep up.

For urgent projects, our two-factory production setup also gives us greater flexibility in scheduling and allows us to evaluate ways to accelerate production when deadlines are tight.

Better Sheet Metal Fabrication Starts Before Production

At Qingdao Huarui, we combine sheet metal fabrication, CNC machining, surface finishing, engineering support, and quality inspection to provide a more complete manufacturing solution—from prototype parts to production assemblies.

For robotics and other fast-developing industries, the goal isn't simply to make a metal part.

It's to make a part that fits the product, fits the production process, and is ready for the next stage of development.
