Understanding Sheet Metal Fabrication: What Really Happens Between a Drawing and a Finished Part?

A sheet metal part can look simple on a drawing. A flat plate, a few holes, some bends, maybe a welded corner. But turning that drawing into a part that actually fits, works, and can be produced repeatedly is a little more complicated.

That is what sheet metal fabrication is really about.

At Qingdao Huarui, we see this every day. Some customers come to us with a fully developed production drawing. Others have a 3D model, a rough sketch, or simply a problem they need a metal part to solve. The manufacturing process may be different, but the goal is the same: turn an idea into a reliable physical part without making the process unnecessarily complicated or expensive.

And sometimes, the best manufacturing advice is surprisingly simple: change one hole, open up one tolerance, move one bend, or choose a different material.

Those small decisions can make a big difference.

Sheet Metal Fabrication Is More Than Cutting and Bending

When people hear "sheet metal fabrication," they often think about laser cutting and bending.

Those are important, but they are only part of the job.

A finished sheet metal component may go through:

Material selection → Laser cutting → Punching → CNC bending → Welding → Hardware insertion → Surface finishing → Assembly → Inspection

Not every part needs every process.

A simple mounting bracket may only require laser cutting, bending, deburring, and powder coating.

A machine enclosure may require dozens of cutouts, multiple bends, welded panels, threaded inserts, grinding, powder coating, and final assembly.

A robot housing can be even more demanding because the sheet metal has to accommodate motors, batteries, sensors, cables, controllers, and other components inside a limited space.

What Happens When Your Drawing Reaches the Factory?

Before the first sheet is cut, there is usually a fair amount of work happening behind the scenes.

Our engineers review the drawing or 3D model and look for practical manufacturing issues.

For example:

• Is the material suitable for the application?

• Is the thickness appropriate?

• Can the required bend be made with standard tooling?

• Are the holes too close to the bend?

• Is the tolerance tighter than necessary?

• Can the welding torch reach the joint?

• Will the part be difficult to powder coat?

• Can it be assembled easily with the mating components?

These aren't theoretical questions.

A hole that is 2 mm closer to a bend might look completely normal on a screen but become a problem during production. A very small bend radius may look neat on a drawing but be difficult to form without cracking or deformation.

This is where DFM, or Design for Manufacturability, becomes useful.

The purpose of DFM isn't to change the customer's design for the sake of manufacturing.

It is to find the places where a small design change can make production easier, more stable, or less expensive without changing what the part is supposed to do.

Cutting Is Only the Beginning

Laser cutting has become one of the most widely used processes in modern sheet metal fabrication.

It is particularly useful for custom parts because a new cutting program can be prepared without manufacturing a dedicated hard tool.

This makes it a good fit for:

• Prototypes

• Custom brackets

• Robot covers

• Electrical panels

• Machine enclosures

• Small-batch production

But good cutting isn't just about getting the outline right.

Hole size, edge quality, small features, spacing, heat-affected areas, and material thickness can all influence what happens later.

A badly designed cut can create problems during bending or assembly even if the laser itself produces the correct shape.

That's why the whole process needs to be considered together.

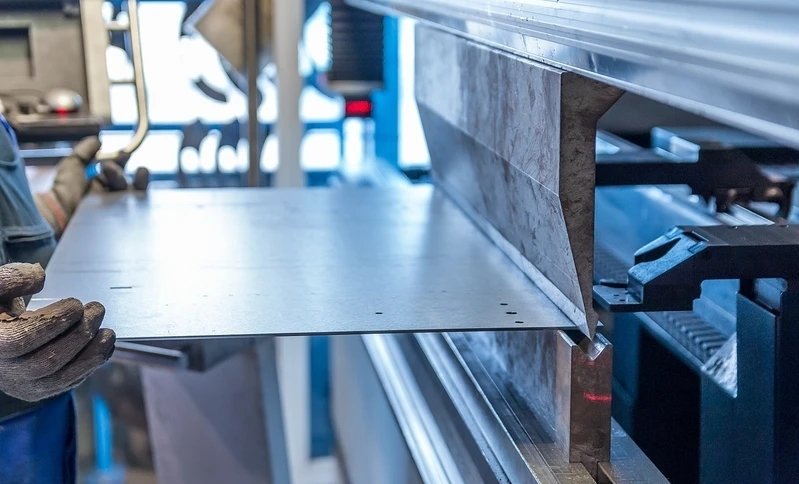

CNC Bending: Where Flat Sheet Becomes a Real Part

Bending is often where a flat sheet starts to become the component you actually need.

Using CNC press brakes, sheet metal can be formed into:

• Brackets

• Channels

• Frames

• Covers

• Cabinets

• Trays

• Enclosures

But getting a 90-degree bend on the machine doesn't automatically mean the finished part will be exactly 90 degrees.

Material properties, thickness, bend radius, tooling, and springback all affect the final result.

For parts with several bends, the bend sequence also matters.

A good bending process considers the complete part rather than treating every bend separately. This is particularly important for robot housings and electrical cabinets, where a small error in one flange can affect the fit of the entire assembly.

At Huarui, CNC bending is combined with engineering review and inspection to keep critical dimensions under control.

Welding: Strong Doesn't Always Mean the Same Thing

Once several sheet metal pieces need to become one assembly, welding often enters the picture.

But welding isn't simply about making two pieces stick together.

The process needs to match the material, thickness, joint design, production volume, and appearance requirements.

Depending on the product, we may use manual welding or robotic welding.

Manual welding is often practical for prototypes, low-volume orders, complicated structures, or parts that change frequently.

Robotic welding becomes more attractive when the product is stable and the same welds need to be repeated many times.

This is particularly relevant to the robotics industry itself.

A robot manufacturer may need a small number of prototype frames during development, followed by hundreds or thousands of identical structures after the design is finalized.

The best welding method can therefore change as the product moves from prototype to production.

Why Robotics Is Increasing the Demand for Better Sheet Metal Fabrication

Robotics is one of the industries where sheet metal fabrication is becoming increasingly important.

A modern robot isn't just motors and software. It also needs a physical structure to hold everything together.

Depending on the type of robot, fabricated metal parts may include:

• Robot covers

• Arm components

• Battery housings

• Sensor brackets

• Control enclosures

• Protective guards

• Mounting plates

• Internal structural supports

And the requirements can be very different.

A warehouse AMR may need a lightweight but durable enclosure.

A factory robot may require strong protective guards.

A humanoid robot may need thin, lightweight covers with a clean appearance.

A prototype robotics company may need only 5 or 10 pieces today and completely different versions a few months later.

This is one reason flexibility has become so important in modern metal manufacturing.

Surface Finishing Is Part of the Manufacturing Process

A fabricated part isn't necessarily finished when it comes out of the welding area.

Depending on the application, it may need:

• Deburring

• Grinding

• Sandblasting

• Powder coating

• Painting

• Anodizing

• Plating

• Polishing

• Brushing

For an internal bracket, appearance may not matter much.

For a robot enclosure sitting in front of customers, it can matter a lot.

For an outdoor electrical enclosure, corrosion protection may be more important than appearance.

For an aluminum CNC component inside a robot, anodizing may provide a useful combination of surface protection and appearance.

The important thing is to decide the finishing requirements early enough that they can be considered during fabrication.

Quality Control Should Focus on What Actually Matters

Quality inspection doesn't mean every dimension has to be measured to an extreme tolerance.

Instead, the inspection plan should focus on the features that affect the part's function.

For example, on a robot mounting bracket, we may pay particular attention to

• Hole position

• Hole diameter

• Overall dimensions

• Bend angle

• Flatness

• Surface condition

For an external enclosure, coating quality and appearance may receive more attention.

For a welded frame, dimensions, joint quality, and distortion may be more important.

At Qingdao Huarui, our QC team performs inspections throughout production rather than waiting until everything is finished. Inspection reports and product photos can also be provided when required.

This helps catch problems earlier, when they are still easier to correct.

Why One-Stop Manufacturing Can Make Projects Easier

A sheet metal project can involve a surprising number of suppliers.

One company cuts the sheet.

Another bends it.

A third company welds it.

Someone else handles the powder coating.

Then another supplier produces the CNC-machined components.

By the time everything reaches final assembly, communication can become difficult.

At Qingdao Huarui, we have two factories and provide a broader range of manufacturing processes under one supply chain.

Our capabilities include:

Sheet Metal Fabrication + CNC Machining + Welding + Surface Finishing + Assembly + Quality Inspection

This is particularly useful for robotics, automation equipment, electrical cabinets, and industrial machinery, where sheet metal and CNC components often need to work together.

Instead of asking several suppliers to coordinate around one product, customers can work with one manufacturing partner for a larger part of the project.

The manufacturing process may also change as the quantity increases.

prototypes to regular production.

At Huarui, we support customers from prototype and small-batch production through larger production runs. Our engineering team can review designs before production, while our two-factory setup gives us flexibility when production schedules become tight. If you have any sheet metal fabrication project，feel free to share with me.
