Complex Sheet Metal Bending Parts

Some sheet metal parts require more than a simple 90-degree bend.

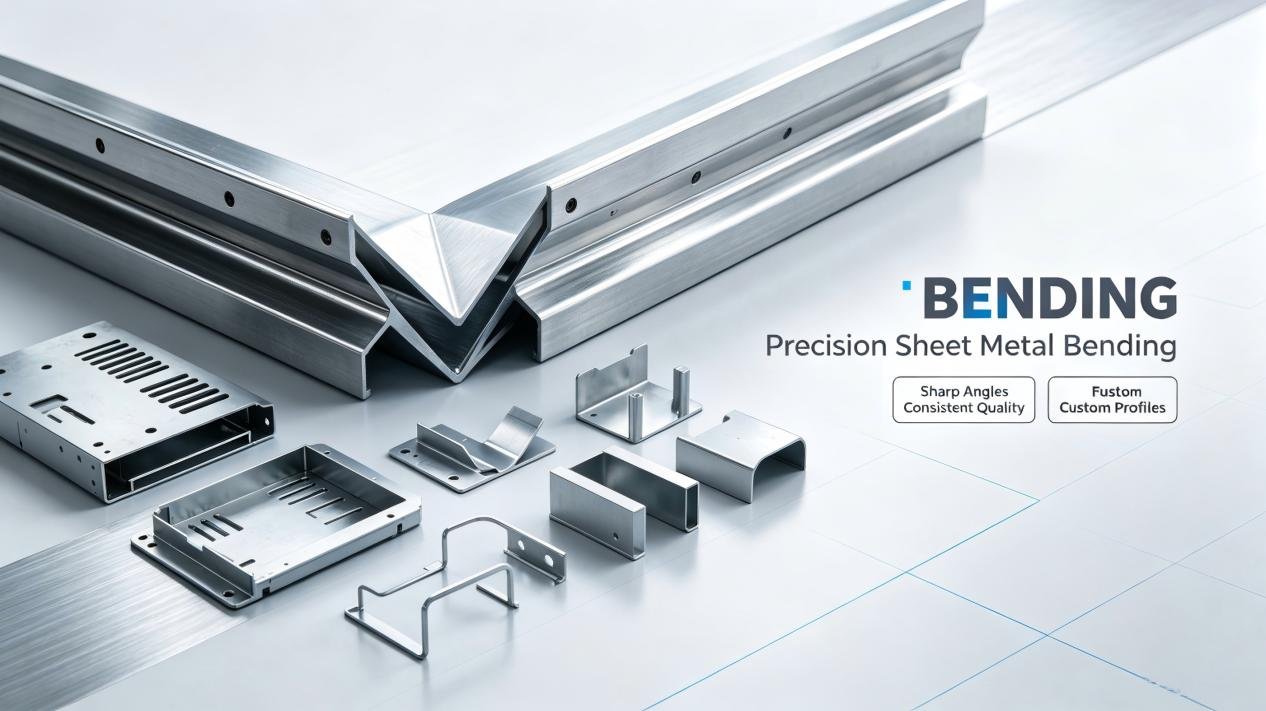

Complex fabricated components may include multiple bends, narrow flanges, different bend directions, deep structures, and integrated assembly features.

Qingdao Huarui provides complex sheet metal bending services for custom components requiring multi-step fabrication.

Our engineering team evaluates the complete part structure and manufacturing process before production to help ensure the design can be efficiently fabricated.

1. Complex Bending Capability

We support different types of complex structures.

l Multi-Bend Components

Parts with multiple bending operations.

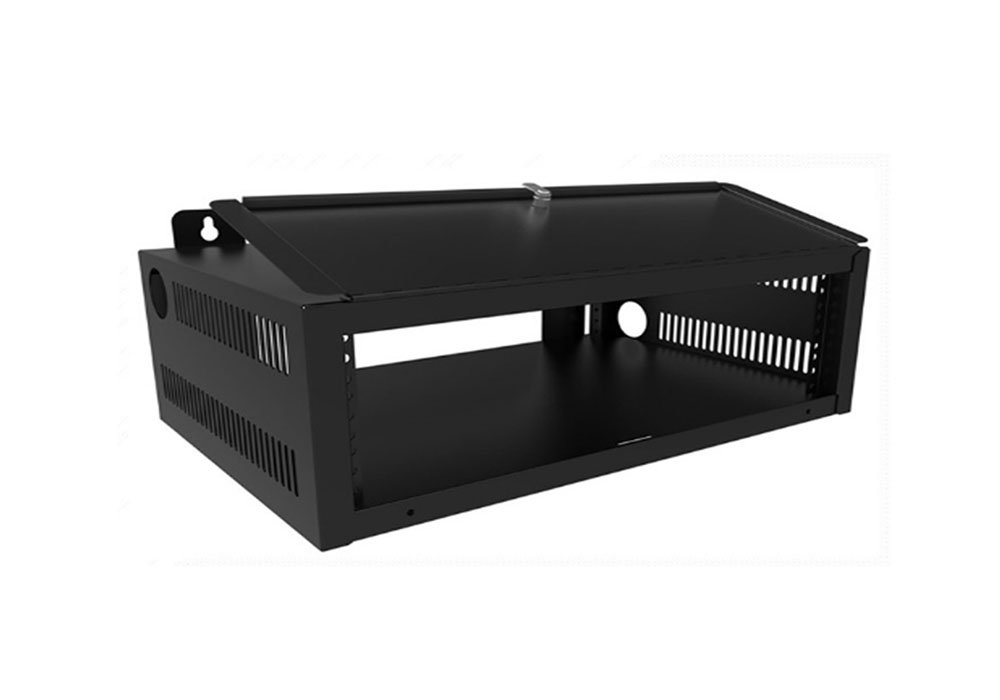

l Box-Shaped Structures

Sheet metal parts formed into box or enclosure structures.

l Channel Components

U-shaped and channel-shaped parts for equipment and structural applications.

l Deep Bend Structures

Parts requiring deeper formed sections and specialized bending arrangements.

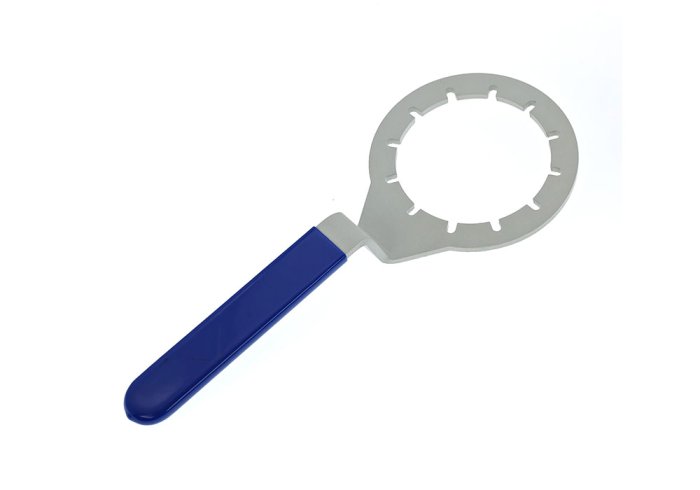

l Custom Fabricated Profiles

Customized shapes produced according to engineering drawings.

2. Engineering and DFM Support

Complex bending projects require careful evaluation before manufacturing.

Our engineering team reviews:

· Bend sequence

· Material thickness

· Bend radius

· Tool access

· Part interference

· Assembly requirements

Improving Manufacturability

DFM feedback can help improve:

· Bending efficiency

· Tool access

· Part consistency

· Assembly compatibility

This is especially valuable for new product development and customized equipment projects.

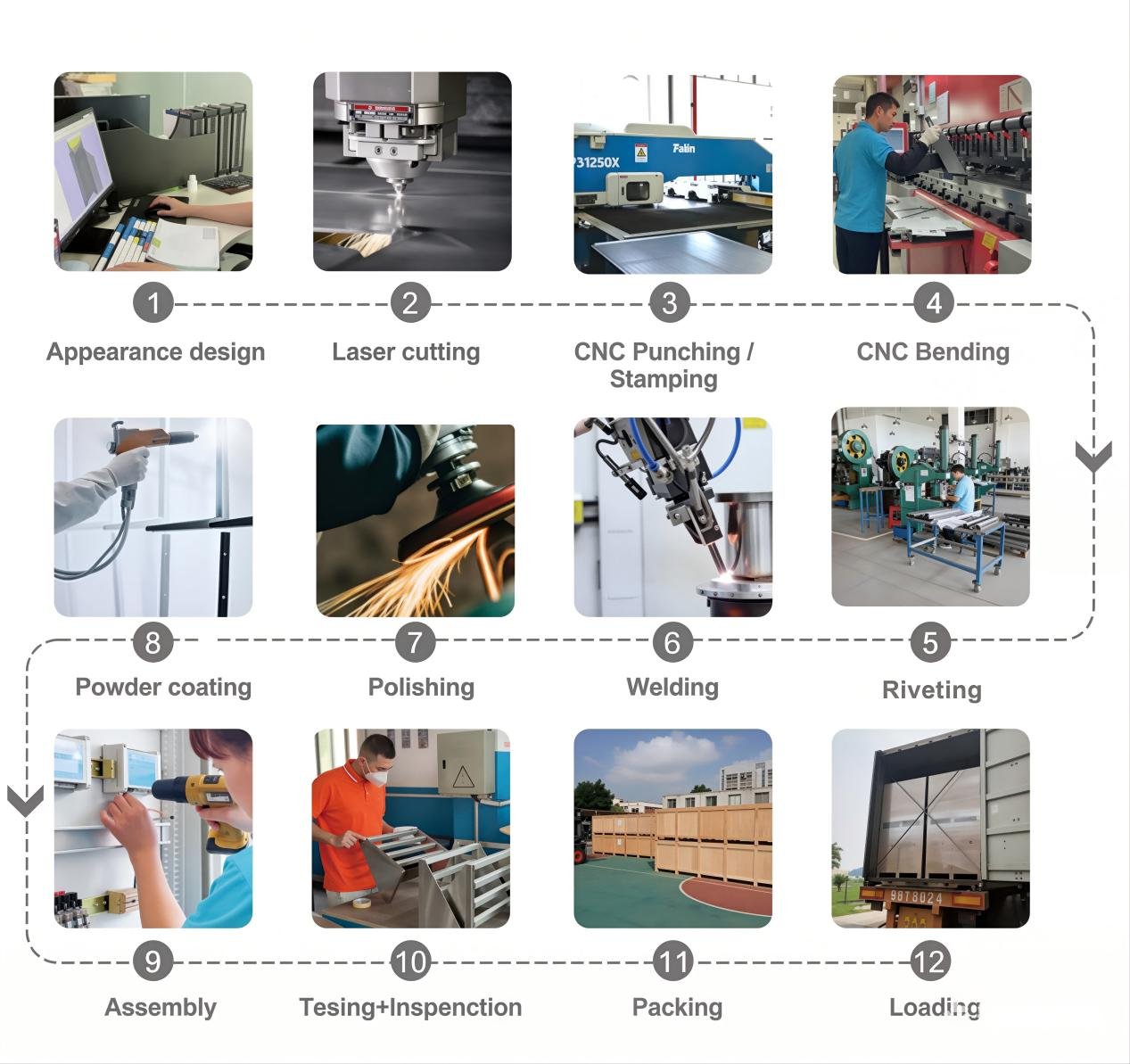

3. Manufacturing Process

Step 1 — Drawing Review

Reviewing part structure and requirements.

Step 2 — Laser Cutting

Preparing accurate flat patterns.

Step 3 — CNC Bending

Performing multiple bending operations.

Step 4 — Secondary Fabrication

Including:

· Welding

· Hardware installation

· Machining

Step 5 — Surface Treatment

According to customer requirements.

4. Applications

Complex sheet metal bending parts are used in:

l Industrial Equipment

Custom structures and equipment components.

l Machine Fabrication

Complex covers and structural parts.

l Electrical Enclosures

Multi-bend enclosure components.

l Automation Systems

Custom fabricated housings and equipment structures.

Why Choose Qingdao Huarui?

l 20,000 m² Manufacturing Facilities supporting both prototype and production orders.

l 150+ Skilled Employees with extensive sheet metal fabrication experience.

l ISO 9001 Certified Quality Management System for consistent manufacturing quality.

l RoHS & REACH Compliant Materials for global market requirements.

l Professional QC Team providing dimensional inspection and quality reports before shipment.

l Confidential NDA Support to protect customer designs and intellectual property.

l Dual Manufacturing Facilities ensuring stable production capacity and reliable lead times.

l Fully Automated Powder Coating Line for consistent surface finishing.

l Robotic Welding Systems delivering repeatable weld quality and structural strength.

l DFM Engineering Support to optimize product design, reduce production costs, and improve manufacturability.

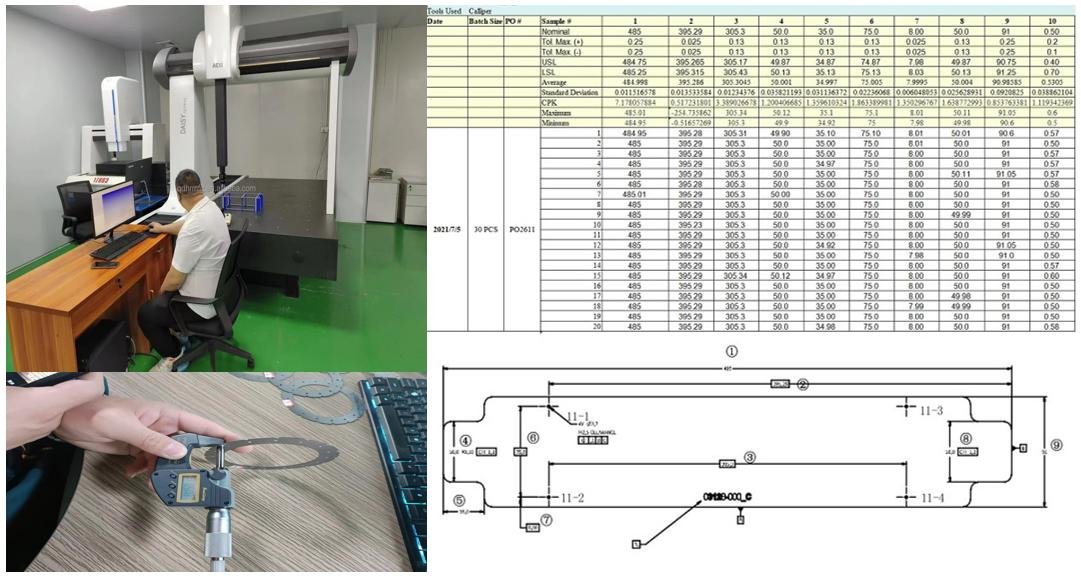

5. Quality Control & Certifications

l Material Inspection

l Production Inspection

l Final Product Inspection

Quality inspection reports can be provided according to customer requirements.

FAQ

What file formats do you accept?

We accept STEP, STP, DWG, DXF, PDF, SolidWorks, and other common CAD formats.

What is the maximum thickness you can laser cut?

The available thickness depends on the material type. Please contact us with your project specifications for detailed recommendations.

Can you manufacture prototypes?

Yes. We support rapid prototyping as well as low- and high-volume production.

Can you provide surface finishing?

Yes. We offer powder coating, brushing, polishing, passivation, electropolishing, and other finishing options.

Can you help optimize my design?

Absolutely. Our engineering team provides Design for Manufacturability (DFM) support to improve production efficiency and reduce manufacturing costs.
